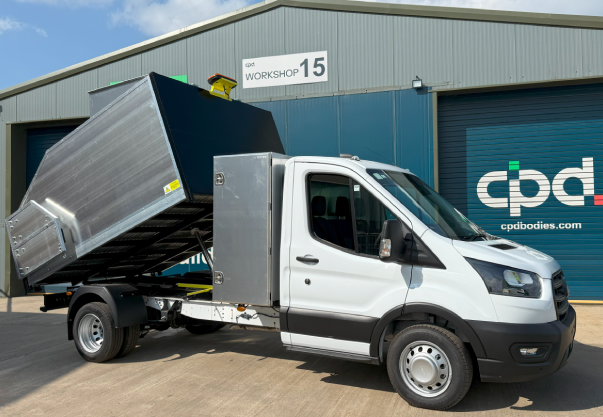

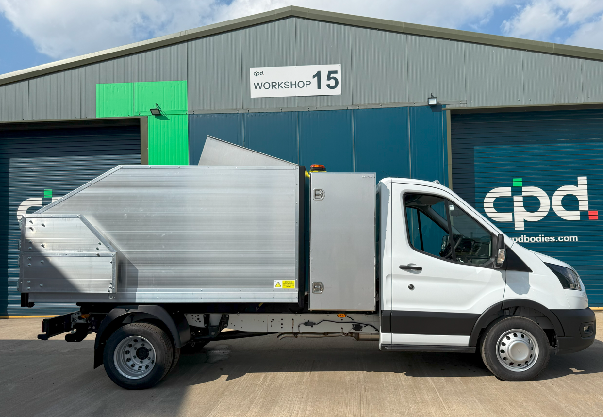

Arb Tipper Conversion on L3 Chassis

This Arb Tipper van conversion was built on a Ford Transit L3 Single Cab chassis, offering greater strength and payload than smaller pickup-style builds. The L3 platform provides a durable base for arboriculture work, with added space and capacity for tools, chippings, and other equipment.

Vehicle Overview

• Chassis: Ford Transit L3 Single Cab, 3.5t, twin rear wheel

• Body Type: Arb Tipper, 9’6” (2926mm)

• Finish: Mill finish aluminium



Conversion Features

• 1/3 pop-up interlocking chipper roof

• Alloy plank flooring with alloy plank greedy sides (around the body)

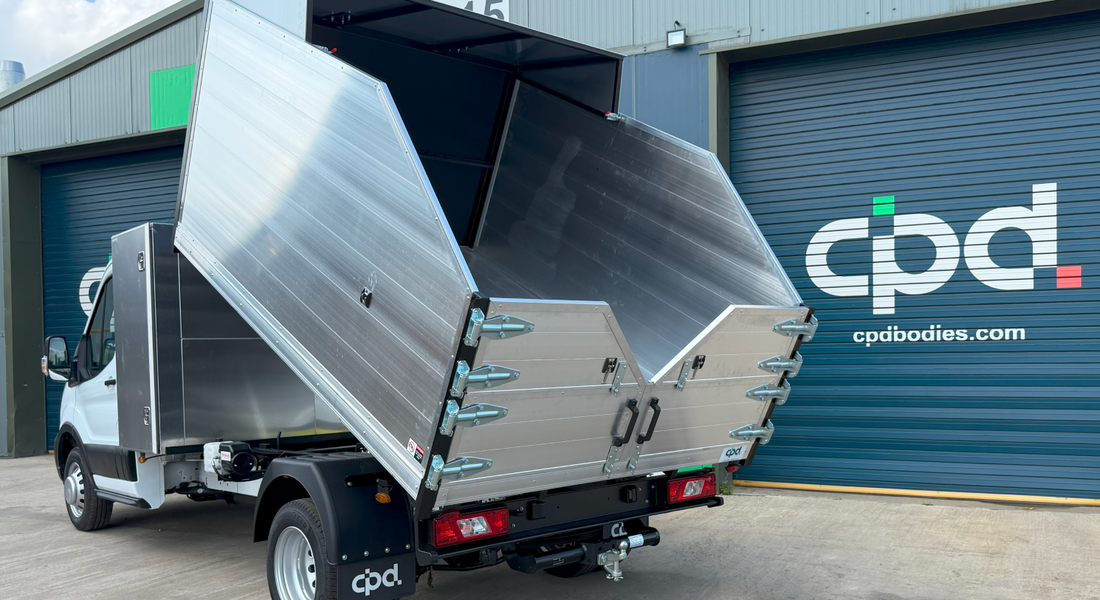

• Sloping sides and V-cut barn doors for efficient chipping

• Barn doors above tailgate (50/50 split) with trailer locks

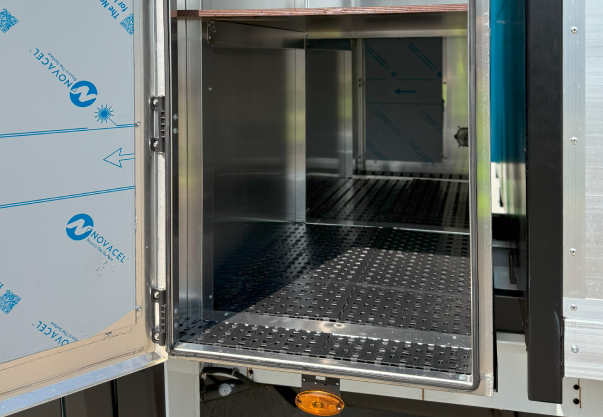

• BAWER retrocab toolpod with barn doors

• Fixed flange towbar (jaw, pin & ball) with 13-pin electrics

• CPD LED marker light kit and R65 approved mini beacon

• Secure storage, safety lighting, and towing functionality



The CPD Solution

By building on an L3 chassis, this Arb Tipper delivers a stronger, more capable solution than smaller pickup alternatives. With enhanced payload and a purpose-built body, it’s designed to meet the demanding requirements of tree work.

Result

A robust, practical Arb Tipper Vans for Sale ready for daily use – combining chipper-friendly design with secure storage and reliable performance. Contact us if you want to see how we can help with your commercial vehicle conversion needs.
