Compact Bin Lift Build for Restricted Access Collection

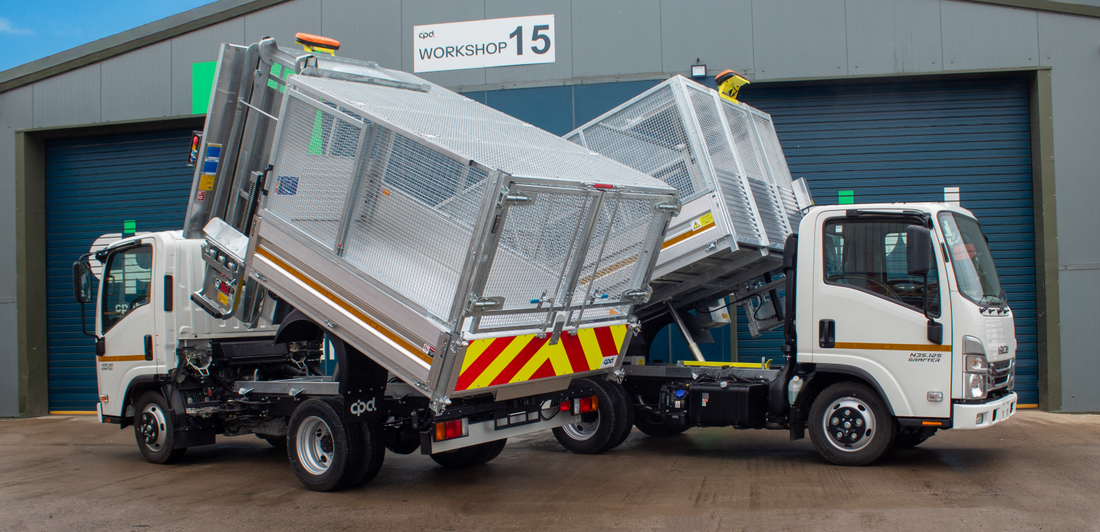

This recent bin lift conversion is proof that small-scale doesn’t mean small-impact. Built on an Isuzu Grafter SWB chassis, this compact 3.5t tipper features an integrated 150kg low-height bin lift – perfect for accessing narrow streets, tight estates, and pedestrianised areas where a standard refuse vehicle simply can’t go.

Tailored for waste management tasks in space-restricted locations, this build supports practical daily use, while still delivering the safety and compliance expected of full-size fleets.

Vehicle Overview

• Base Vehicle: Isuzu Grafter SWB Single Cab

• Gross Vehicle Weight: 3,500kg

• Drive Configuration: Rear-wheel drive, twin rear wheel

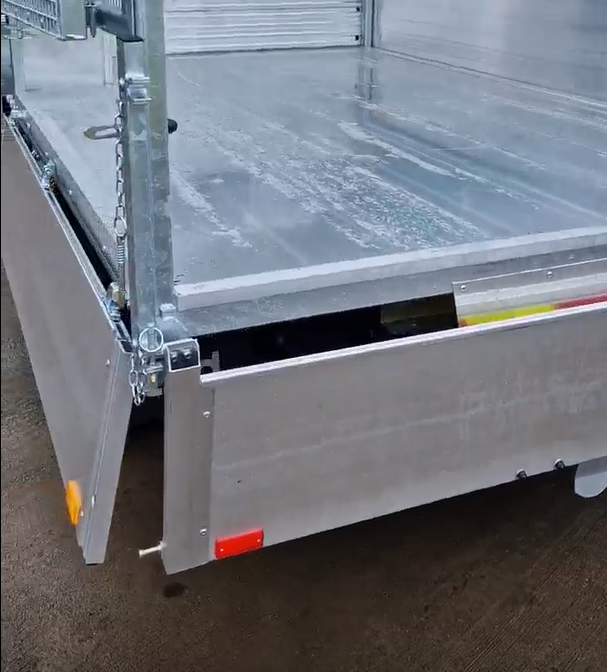

• Body Type: 10’6” Alloy Tipper with 150kg Bin Lift

• Chassis Colour: White

• Body Finish: Mill finish

Conversion Features

Compact Chassis, Maximum Access
Built on a short-wheelbase frame, this vehicle can navigate tight streets and back alleys with ease, ideal for local councils or contractors working in busy urban zones.

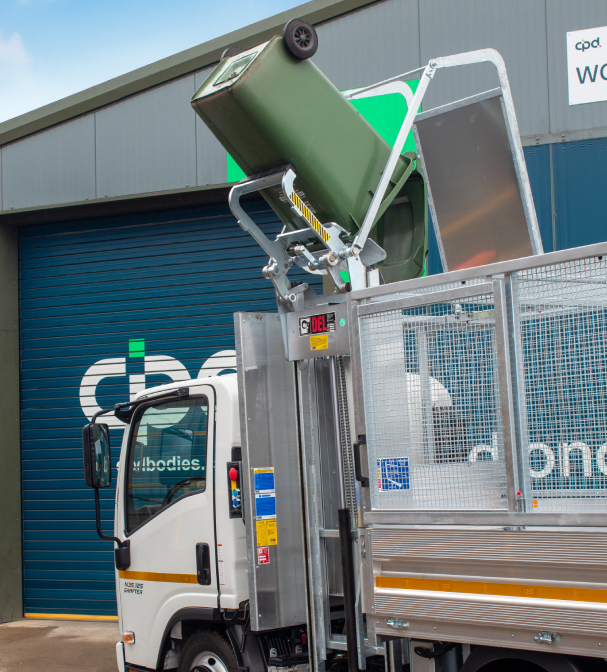

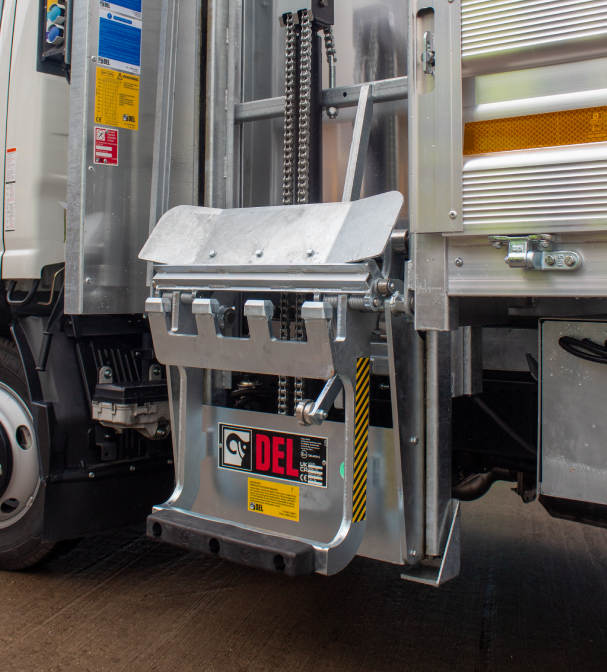

150kg Low-Height Bin Lift
Integrated to the alloy tipper body for easy waste handling – built for two-wheeled bins, ideal for domestic or street collection.

Full Safety & Visibility Package

• Amber LED beacon & strobes

• Chapter 8 chevron board

• Conspicuity tape & red lozenges

• Reverse camera with 7” monitor

• Reverse alarm with night silent override

Secure Caged Body

Cab-height galvanised cage with rear barn doors, sliding side access, and roof cover for safe and compliant waste containment.

A Smarter Solution for Waste Collection

This build shows how smart vehicle design can solve real-world operational challenges – whether it’s working in a city centre or navigating older housing estates. Compact, compliant, and highly capable, it’s ready to go where traditional refuse trucks can’t.
